• Axorp C series

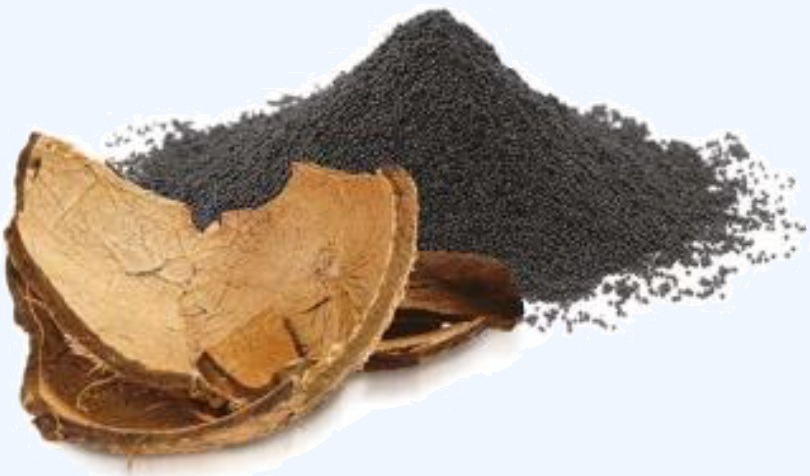

Axorp C series are a medium to high activity coconut shell based manufactured by the world only multipoint steam activation process.
The unique process creates special pore size distribution which best suit for the use in various water application, not limited to soft drinks bottling companies, breweries, industrial process water, power plant and protection of ion exchange resin.
The unique process creates special pore size distribution which best suit for the use in various water application, not limited to soft drinks bottling companies, breweries, industrial process water, power plant and protection of ion exchange resin.
=== Activated carbon analysis values ===
(The figures are representative figures for Obbro Carbon's past production products.)
(The figures are representative figures for Obbro Carbon's past production products.)
| Axorp C-100 | Axorp C-200 | |
| Iodine adsorption | 1,000 mg/g | 1,100 mg/g |
| Ash Content | 3 % | 3 % |
| Moisture, as packed | 5 % | 5 % |
| Hardness | 99 % | 99 % |
| Apparent Density | 470 - 550 kg/m³ | 470 - 550 kg/m³ |
=== SPECIFICATION ===
Superior
Hardness
Maximize
Density
High
Microporous
Structure
Clean & Low Ash
=== SIZE AVAILABLE (ASTM) ===
• 6 x 12 • 8 x 30 • 12 x 40 • 20 x 50
• 30 x 60 • 80 x 200 • 80 x 325
• 30 x 60 • 80 x 200 • 80 x 325
The particle size and packaging can be changed according to customer requests.
• AxorPlus C series
AxorPlus C series are a medium to high activity coconut shell based manufactured by multipoint steam activation process.
On top of producing the world best carbons, we further advance to acid washed the carbons to meet world top quality standard exclusively in home drinking water industry as well as not limited to soft drinks bottling companies, breweries, industrial process water, power plant, protection of ion exchange resin and RO membrane.
On top of producing the world best carbons, we further advance to acid washed the carbons to meet world top quality standard exclusively in home drinking water industry as well as not limited to soft drinks bottling companies, breweries, industrial process water, power plant, protection of ion exchange resin and RO membrane.
=== Activated carbon analysis values ===
(The figures are representative figures for Obbro Carbon's past production products.)
(The figures are representative figures for Obbro Carbon's past production products.)
| AxorPlus C-100 | AxorPlus C-200 | |
| Iodine adsorptio | 1,000 mg/g | 1,100 mg/g |
| Ash Content | 1 % | 1 % |
| Moisture, as packed | 5 % | 5 % |
| Hardness | 98 % | 98 % |
| Apparent Density | 470 - 510 kg/m³ | 460 - 500 kg/m³ |
| pH | 6 - 8 | 6 - 8 |
=== SPECIFICATION ===
Excellent
Hardness
Superior
Adsorption
High
Microporous
Structure
Low Ash,
Low Dust
Neutral
pH
※=== SIZE AVAILABLE (ASTM) ===
• 6 x 12 • 8 x 30 • 12 x 40 • 20 x 50
• 30 x 60 • 80 x 200 • 80 x 325
• 30 x 60 • 80 x 200 • 80 x 325
The particle size and packaging can be changed according to customer requests.
• CGF-60 4x8
CGF-4x8 is steam activated, made from selected grades of Coconut shell charcoal that yields high hardness and low attrition properties essential for the long life expectancy for many applications.
It is excellent for odor and VOC removal.
It is excellent for odor and VOC removal.
=== Activated carbon analysis values ===
(The figures are representative figures for Obbro Carbon's past production products.)
(The figures are representative figures for Obbro Carbon's past production products.)
| CGF-55 4x8 | CGF-60 4x8 | |
| CTC Adsorption | 55 % | 60 % |
| Ash Content | 3 % | 3 % |
| Moisture, as packed | 5 % | 5 % |
| Hardness | 98 % | 97 % |
| Apparent Density | 470 - 520 kg/m³ | 460 - 500 kg/m³ |
=== SPECIFICATION ===
Superior
Hardness
Maximize
Density
High
Microporous
Structure
Clean &
Low Ash
The particle size and packaging can be changed according to customer requests.
